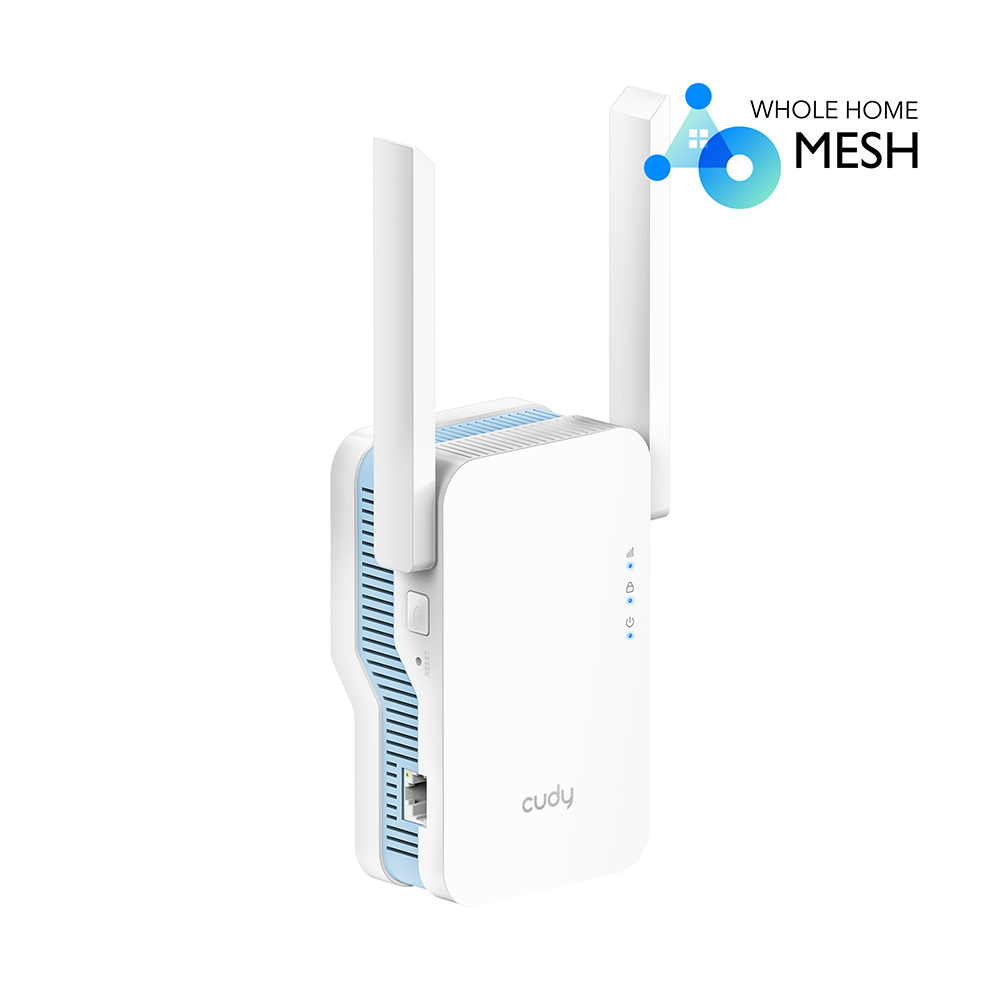

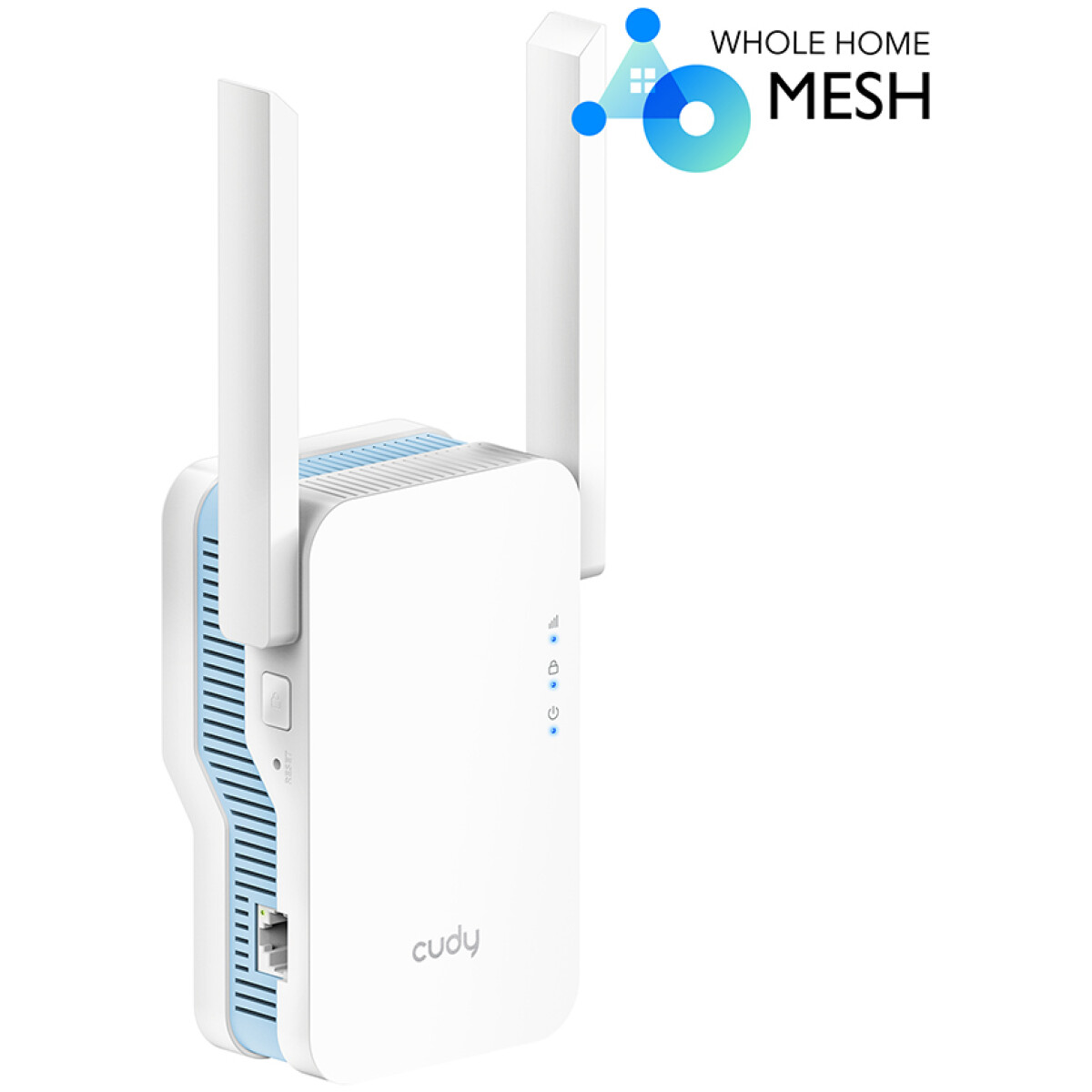

מגדיל טווח Cudy AC1200 Wi-Fi Mesh Repeater Dual Band
₪ 120
18 במלאי
מפרט טכני
| CPU | |
| Chipset | MT7628A+MT7613B |
| CPU Details | 580 MHZ Single-Core, MIPS24KEC |
| Memory/Storage | |
| Flash/ROM | 8 MB (64 Mbit) NOR |
| DDR/RAM | 64 MB (512 Mbit) DDR3 |
| Wireless | |
| 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) |
| Wi-Fi Antennas | 2× Fixed |
| FEM or PA/LNA |
5 GHz: 2× Internal 2.4 GHz: 2× Internal |
| Range Performance |
Max: 150 m (492 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions |
| Wall Performance |
One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
| Wi-Fi Transmission Power (CE) |
<20 dBm (2.4 GHz) <23 dBm (5.15 GHz ~ 5.35 GHz) <30 dBm (5.47 GHz ~ 5.725 GHz) |
| Wi-Fi Transmission Power (FCC) |
<24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz) <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz & 5.725 GHz ~ 5.825 GHz) |
| Interfaces | |
| 10/100 Mbps RJ45 Ports | 1 |
| LED | Signal Strength, WPS, Power |
| Physical Buttons | WPS Button, Reset Button |
| Power Input | AC Plug |
| Power Input Note | EU, US, UK plug are available on corresponding region versions |
| Power | |
| AC | 110V ~ 220V |
| Reliability | |
| Environment |
Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
| Mechanical | |
| Install in a Daisy Chain | Recommend to install less than 3 repeaters in a wireless chain. |
| Installation | Plug-In-Socket |
| Casing Material | Plastic |
| Dimension |
129.6×80×48.6 mm 5.1×3.15×1.91 inches |
| Product Weight |
UK: 210 g (7.41 oz.) US / EU: 205 g (7.23 oz.) |
